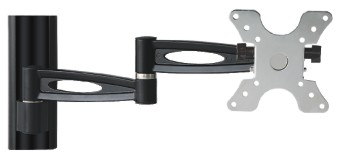

Model: L23S (SCL01)

LCD Cantilever  15”-23”

Net Weight: 1.4Kgs

Tilt: -12DEG to +12DEG

Loading Weight: 15Kgs

45-422mm from Wall

VESA 75 x 75, 100 x 100

Model: L37S (SCL02)

LCD Cantilever  13”-37”

Net Weight: 4.2Kgs

Tilt: -15DEG to +15DEG

Loading Weight: 35Kgs

80-540mm from Wall

VESA 75 x 75, 100 x 100

Model: L42S (SCL03)

LCD Cantilever  25”-42”

Net Weight: 7.8Kgs

Loading Weight: 60Kgs

110-450mm from Wall

Model: L42SW (SCL04)

LCD Cantilever 25”-42” Wide Back

Net Weight: 7.8Kgs

Loading Weight: 60Kgs

110-450mm from Wall

Model: LP54S (SCL05)

LCD/Plasma Cantilever 30”-54”

Net Weight: 12.5Kgs

Loading Weight: 60Kgs

110-450mm from Wall

Model: L42SU/D (SCL06)

LCD Cantilever 22”-42”

Net Weight: 10.8Kgs

Loading Weight: 40Kgs

110-660mm from Wall

(L) 510mm x (H) 380mm

Can be adjusted up & down 10^o

Can be adjusted left & right 180^o

Model: LP54SU/D (SCL07)

LCD/Plasma Cantilever 30”-54”

Net Weight: 12.5Kgs

Loading Weight: 50Kgs

110-660mm from Wall

(L) 762mm x (H) 508mm

Can be adjusted up & down 10^o

Can be adjusted left & right 180^o

Model: LP60SU/D (SCL08)

LCD/Plasma Cantilever 32”-60”

Net Weight: 28Kgs

Loading Weight: 80Kgs

115-515mm from Wall

(L) 770mm x (H) 480mm

Can be adjusted up & down 15^o

Can be adjusted left & right 180^o
